Parts/Components for Topcon 3D Dozer Systems
|
Your Price: Call 1.800.342.9238 for More Info and Pricing
|

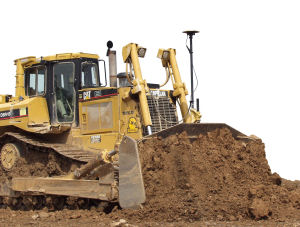

| Dozer System Five 3D-GPS+ |
| Illustrated Cable & Component Guide in Generic Installation |
|
 |
|
|
|
System Five 3D Control Box: |
|
9168-0000-01 |
| |
|
|
|
9168-0000-04 |
|
|
|
Simple Auto/Manual Knob: |
|
9095-1035 |
|
|
|
Blade Slope Sensor: |
|
|
|
|
|
± 20% Range: |
|
9150P-0000 |
|
|
|
± 100% Range |
|
9152P-0000 |
|
|
|
Junction Box: |
|
9408-1000 |
|
|
|
Hydraulic Valve Assembly: |
|
Refer to Add-On Kit |
|
|
|
MC-2.5 GPS+ Receiver Box |
|
|
|
|
|
Single: |
|
9901-00XX
(varies for radio config & type - contact Sales) |
|
|
|
Dual: |
|
9902-00XX
(varies for radio config & type - contact Sales) |
|
|
|
MC-A1 Antenna, Single |
|
9932-0000 |
| |
|
MC-A1 Antenna, Dual |
|
9931-0000 |
|
|
|
Rover Radio Antenna: |
|
Contact Sales |
|
|
|
Power Cable: |
|
9063-1032-8 |
|
|
|
Control Box - Mainfall Cable: |
|
9060-5116 |
|
|
|
Junction - Blade Coil Cord Cable: |
|
|
|
|
|
7.5 ft.: |
|
9060-5075 |
|
|
|
15 ft.: |
|
9060-5131 |
|
|
|
Valve Cable: |
|
|
|
|
|
Vickers Valves: |
|
9063-1024-17 |
|
|
|
Danfoss Valves: |
|
9063-1025-17 |
|
|
|
Control Box - Rover Box Cable: |
|
9063-1054-15 |
|
|
|
GPS+ Mating Cable* |
|
9063-1036-20 |
| |
|
Single: |
|
9063-1036-33 |
| |
|
Dual: |
|
9063-1036-16Y |
| |
|
*(Both cables are necessary for dual) |
|
|
|
GPS+ Antenna Cable: |
|
9063-1034-15 |
| |
|
OLD: |
|
|
|
|
|
15 ft. Single: |
|
9063-1034-15 |
|
|
|
25 ft. Single: |
|
9063-1034-25 |
| |
|
NEW: |
|
|
|
|
|
15 ft. Single: |
|
9063-1069-15 |
|
|
|
25 ft. Single: |
|
9063-1069-25 |
| |
|
OLD: |
|
|
|
|
|
15 ft. Dual: |
|
9063-1052-15 |
|
|
|
25 ft. Dual: |
|
9063-1052-25 |
| |
|
NEW: |
|
|
|
|
|
15 ft. Dual: |
|
9063-1081-15 |
|
|
|
25 ft. Dual: |
|
9063-1081-25 |
|
|
|
Radio Antenna Cable: |
|
9900-1037 |
|
|
|
Dozer Reverse Cable: |
|
9095-1044 | | |
|
| | |
|
| |
| | |
|
|
|
