Parts for CST Heavy Duty Q.R. Aluminum Tripod, 60-ALQRI20 - Use the 'Drop-Down' Menu Inside for Pricing

View Larger Image

Manufacturer: CST/berger Product Options Parts - CST 60-ALQRI20 Aluminum Tripod # 81-0310: Select Parts - CST 60-ALQRI20 Aluminum Tripod # 81-0310 Tripod Head, Flat, #1 Centering Knob Cap, 5/8", #2 Swing Arm for Flat Head, #3 Bell Housing for Flat Head, #4 Plumb Bob Wire Assembly, #5 Hinge Clamp, #6 5/16-18 x 1" Large Hex Head Cap Screw, #7 Extended HInge Clamp, #8 Complete Leg Assembly, #9 Carrying Strap, #10 Hinge Bushing, #11 Universal Tripod Hinge, #12 1/4-20 Hex Washer Head Screw, #13 Band Side Strut, 28-3/4" long, #14 Gib Side Strut, 28-3/4", #15 Quick Release Clamp Band, #16 Pop Rivet, #17 Center Leg Stop Cap, #18 #10 x 1/2" Large Screw, Self-Tap, #19 Center Extension Leg, 30-1/28" Long, #20 1/4-20 x 1-1/2" Large Hex Cap Screw, #21 Washer, Flat, 1/4", #22 Washer, Lock, 1/4", #23 1/4-20 Hex Head Nut, #24 Tripod Shoe, #25 Shoe Point, #26 Quick Release Pin, #27 Quick Release Lever, #28 'E' Ring, #29 Leg Clamp Pinch Plate, #30 Lock Shaft, Square, #31 5/16-18 Hex Locknut, #32 Quantity: Email this page to a friend

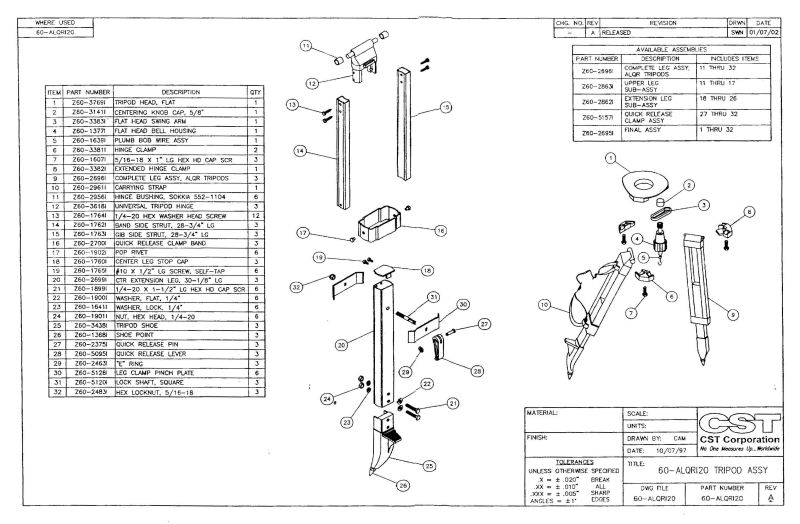

All parts are sold as 'each'. 60-ALQRI20 Parts PDF (Click for larger view)  New Tripods
