4 Models:

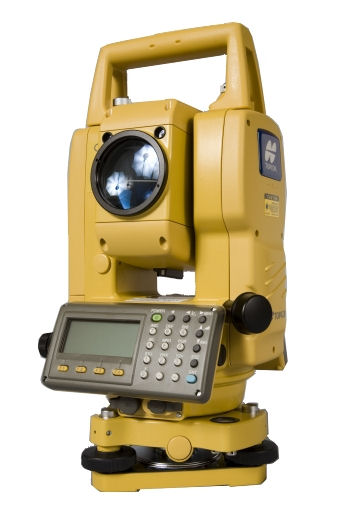

GPT-3202NW 2" Accuracy
GPT-3203NW 3" Accuracy
GPT-3205NW 5" Accuracy
GPT-3207NW 7" Accuracy
New Standard Reflectorless Total Stations Offering Enhanced EDM Performance and Increased Data Collection Capability
Industry-Leading Technologies to Maximize Work Efficiency
Topcon’s GPT-3200NW series total stations offer an array of new
features that include the enhanced non-prism measurement performance,
improved user interface, and increased onboard data collection
capability while maintaining field-proven durability and portability.
The GPT-3200NW provides superior performance and quality backed by
Topcon’s industry-leading technologies.
Features:
- Extended Non-Prism Measurement Range up to 1,310ft. (400m)
- Class I/1M Safe Pulse Laser EDM
- Laser Pointer for NP Measurement and Layout
- 24-key Alphanumeric Keyboard
- TopField and Road Onboard Software
- Point Guide for Stakeout/Layout
- Laser Plummet for Quick Setup
- Bluetooth® Wireless Connectivity
- Toughest IP66 Dust and Water Protection
Extended Non-Prism Range with Class I/1M Safe Laser
A refinement of the Non-Prism EDM in the GPT-3200NW allows measuring
distances up to 1,310ft. (400m) range without a reflector. Incorporating
Topcon’s advanced time-of-flight (pulse) technology, the GPT-3200NW
offers both of superior performance and maximum safety with its Class I
(FDA) / Class 1M (IEC) safe laser. This allows safe use even in areas
with heavy traffic.
TopField / Road Software with Alphanumeric Keyboard
The onboard “TopField” and “Road” software dramatically increases
efficiency in topo data collection, construction layout, as well as
road stakeout tasks. The 24-key alphanumeric keyboard allows for quick
inputting of point numbers, codes, attributes, and other necessary data.
| TELESCOPE
|
| Length |
150mm (5.9 in.)
|
| Objective Lens Dia. |
45mm (1.77 in.), EDM 50mm (1.97 in.)
|
| Magnification |
30x
|
| Image |
Erect
|
| Field of View |
1°30'
|
| Resolving Power |
2.8"
|
| Minimum Focus Distance |
1.3m (4.27 ft.)
|
| DISTANCE MEASUREMENT - PRISM MODE
|
| Measuring Range |
Mini prism 1,000m (3,280 ft.)
1 prism 3,000m (9,900 ft.)
|
| Measuring Accuracy |
±(2mm + 2ppm x D)m.s.e.
|
| Measuring time |
Fine mode 1mm (0.005 ft.) 1.1s (Initial 2.5s)
Fine mode 0.2mm (0.001 ft.) 1.5s (Initial 3.0s)
Coarse mode 1mm/10mm (0.005/0.02 ft.) 0.8s (Initital 2.5s)
|
| DISTANCE MEASUREMENT - NON-PRISM MODE
|
| Measuring Range |
Condition I*1: 1.5m to 350m (5 ft. to 1,150 ft.)
Condition II*2: 1.5m to 400m (5 ft. to 1,310 ft.)
|
| Measuring Accuracy |
±(3mm + 2ppm x D)m.s.e.
|
| Measuring time |
Fine mode 1mm (0.005 ft.) 1.7s (Initial 3.0s)
Fine mode 0.2mm (0.001 ft.) 2.6s (Initial 3.5s)
Coarse mode 1mm/10mm (0.005/0.02 ft.) 1.0s (Initital 2.0s)
|
| ANGLE MEASUREMENT
|
| Method |
Absolute Reading
|
| Detecting System |
GPT-3202NW
H: 2 sides V: 2 sides
GPT-3203NW and GPT-3205NW
H: 2 sides V: 1 side
GPT-3207NW
H: 1 side V: 1 side
|
| Minimum Reading |
GPT-3202NW, GPT-3203NW and GPT-3205NW
1" / 5" (0.2mgon/1mgon)
GPT-3207NW
5" / 10" (1/2mgon)
|
| Accuracy |
GPT-3202NW
2" (0.6mgon)
GPT-3203NW
3" (1mgon)
GPT-3205NW
5" (1.5mgon)
GPT-3207NW
7" (2mgon)
|
| Diameter of Circle |
71mm (2.8 in.)
|
| DISPLAY/KEYBOARD
|
| Display |
Graphics LCD 160 x 64 Dots with backlight, 20 characters x 4 lines
|
| Keyboard |
Alphanumeric, 24 keys
|
| TILT CORRECTION
|
| Tilt Sensor |
GPT-3202NW, GPT-3203NW and GPT-3205NW
Dual axis
GPT-3207NW
Single axis
|
| Method |
Liquid type
|
| Compensating Range |
±3'
|
| Correction Unit |
1" (0.1mgon)
|
| OTHERS
|
| Laser Pointer |
Red Laser Diode, Wavelength 690nm
|
| Point Guide |
Two Orange LED
|
| Plummet |
Laser Plummet (Red Laser Diode, Wavelength 633nm)
|
| Internal Memory |
Max. 24,000 points
|
| Interface |
RS-232C / Bluetooth
|
| Instrument Height |
176mm (6.93in.)
|
| Laser Class |
Class I/1M (EDM), Class 2 (Laser Pointer/Laser Plummet)
|
| Circular Level Sensitivity |
10'/2mm
|
| Plate Level Sensitivity |
GPT-3202NW, GPT-3203NW and GPT-3205NW
30"/2mm
GPT-3207NW
40"/2mm
|
| Dimension |
336(H) x 184(W) x 172(L) mm (13.2(H) x 7.2(W) x 6.8(L) in.)
|
| Weight |
Instrument (with battery) 5.3kg (11.6 lbs)
Plastic Carrying Case 3.4kg (7.5 lbs)
|
| Dust and Water Protection (IEC 60529) |
IP66 (with BT-52QA installed)
|
| Operating Temperature |
-20°C to +50°C (-4°F to +122°F)
|
| Battery BT-52QA Operating Time |
Distance and Angle Measurement-About 5.0 hrs / About 4.2 hrs w/Bluetooth connection
Angle Measurement Only-About 45 hrs
|
|
|
| | |
|
| |
| | |
|
|
|
