!Topcon HiPer Ga GPS Systems
|
|
Your Price: Call 1.800.342.9238 - Info & Pricing
Detailed Description

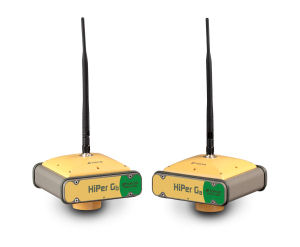

HiPer Ga
The HiPer Ga model receiver has standard GPS satellite tracking capability with the added bonus of GLONASS satellite tracking upgradeability via OAF activation code. No hardware changes or modifications are required. Use the HiPer Ga as a cable free RTK base and rover system; or as two rover receivers from a fixed base station or a GNSS network system by way of radio or cellular communication.
HiPer Ga features include:
- Innovative, cable-free system design
- Complete GPS and Glonass satellite system tracking
- Advanced Digital Radio Communications System
- Integrated Bluetooth Wireless Technology
- Powerful 40 channel GNSS board operating at up to 20Hz
- User selectable and upgradeable internal memory
- Rugged, waterproof, field proven system design
If you need an economical RTK solution that provides advanced technology, wireless system design, and rugged, waterproof construction, it’s time to think green. It’s time for Topcon and the new Green Label HiPer receivers!
Ga Specifications:
| Tracking
|
| Signal |
GPS Only L1/L2 C/A, P-Code, Full Cycle Carrier
|
| Channel |
40 channels L1/L2
|
| Cold Tracking |
< 60 seconds
|
| Warm Tracking |
< 10 seconds
|
| Reacquisition |
< 1 seconds
|
| Accuracy
|
| Static |
3mm+0.5ppm x D horizontal, 5mm+0.5ppm x D vertical
|
| RTK/Kinematic |
10mm+1ppm x D horizontal, 15mm+1ppm x D vertical
|
| DGPS |
0.3m Post Processing, < 0.5m Real time
|
| Physical
|
| Enclosure |
Aluminum Extrusion construction
|
| Dimensions |
W:159 x H:173 x D:113 mm
|
| Weight |
1.65 kg
|
| Environmental
|
| Operating Temperature |
-30 ~ +60 degrees Celsius
|
| Storage Temperature |
-40 ~ +75 degrees Celsius
|
| Humidity |
95 %
|
| Waterproof |
IPX6
|
| Power
|
| Internal Battery |
Li-ion (4400mA/7.4V), non-detachable
|
| Operating Time |
10 TX, 12 RX, 16 static Hours
|
| External Power |
1 port(s)
|
| Input Voltage |
6 ~ 28 V DC, 9 ~ 28 minimum charge
|
| Communication
|
| Bluetooth |
yes
|
| USB |
1.1 Version
|
| Key and LED
|
| LED |
4LED x 3 color
|
| Memory
|
| Internal Memory |
yes
|
| Capacity |
8 not upgradeable MB
|
| Logging Time |
1080 Hours
|
| Connectors
|
| External Power Port |
1 port(s), N/A
|
| Serial Port |
2 port(s), N/A
|
|
|
|
