SubSurface ML-3S 40" and ML-3L 55" Magnetic Locator w/Soft Case
|
Product Options
| SubSurface ML-3 Magnetic Locator: |
|
|
|
Magnetic
locator offers durable one-handed operation that’s 100% waterproof.
The
ML-3 is a much-anticipated and welcome addition to the ML family of magnetic
locators from SSI. ML-3 magnetic locators represent the best in innovation at
work for the water/sewer industry, surveying industry and military.
That’s because the ML-3 reflects many
of the items on our customers’ technological wish lists. The ML-3 offers unparalleled
durability, as all components are housed inside the aircraft-grade aluminum
monotube units.
The
ML-3 short is 40″ to meet surveyors’ personal preference, providing an
ergonomic, lightweight, rugged, one-handed operation option to traditional
magnetic locators.
The
ML-3 long is 55″, making it the longest magnetic locator on the market. It
allows you to make the biggest sweeps possible without compromising on
accuracy.
But don’t let its looks fool you. The
ML-3S is the only magnetic locator in the world that is 100 percent waterproof,
IP68 certified up to 250 feet – a first for the industry – so it can be used in
difficult weather and submerged under water. Plus, its auto-zero feature allows
the user to “cancel” ambient magnetics or magnetic gradient in the soil or
water. And it’s digitally tuned, so it offers unparalleled accuracy in
detecting ferromagnetic objects.
Key
Features
- Detection
of buried ferrous metal objects at depths up to 8 feet or more
- Handgun:
One to two feet
- Projectile: Four to five feet
- Water standoff valve: Six to ten
feet
- Varying
pitch audio signal mode using a moving coil speaker for enhanced audio output
- IP68
Certified, waterproof and complete protection against sand, dust, and dirt
- Waterproof
sensor tube pressure tested to water depths of up to 250 feet
- Easy-to-use,
one-handed operation with four-button keypad:
- On/Off
button: Turns unit on or off
- Zero
button: Automatically calibrates unit to ambient magnetic conditions
- Gain
Up button: Increases the locating sensitivity of the unit
- Gain
Down button: Decreases the locating sensitivity of the unit
- Rugged
construction for field conditions
- Low
battery indication with flashing LCD

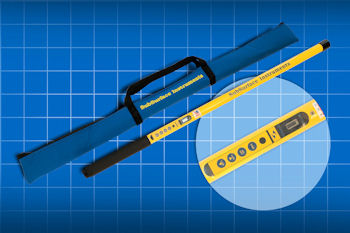

- Includes
soft case with carrying straps and inside pocket for batteries and manual;
Optional aluminum hard case available
- Underwater
search and detection of Submerged vehicles UXOs and mines Salvageable wrecks
Pipes and cables
- Over
3500 ML-3 units in Afghanistan used for detection of improvised explosive
devises (IEDs) and Unexploded Ordnances (UXOs)
- Made
in the USA – Built and serviced entirely in Wisconsin
Technical
Specifications
- Input
Power: Three standard 9-Volt alkaline batteries
- Battery
Life: Approx. 40 hours
- Frequency:
16.5 kHz
- Auto:
Speaker pitch increase in frequency proportional to gradient field intensity
- Visual
Display: LCD display with a bar graph indicating polarity and relative strength
of the signal. Also provides low battery indication.
- Operating
Temperature: -13° to 140°F
- Ingress
Protection: IP68 Certified up to 250 feet
- Exterior
Material: Aircraft grade aluminum
- Manufacturer’s
Limited Warranty: 7 years
Item
No. Overall Length Weight
78-0732
(ML-3S) 40 in. 1.8 lbs.
78-0733
(ML-3L) 55 in. 2.8 lbs.
|
|
| | |
|
| |
| | |
|
|
|
